LSx Coil Driver

Postby VL400 » Wed Jul 03, 2013 11:45 am

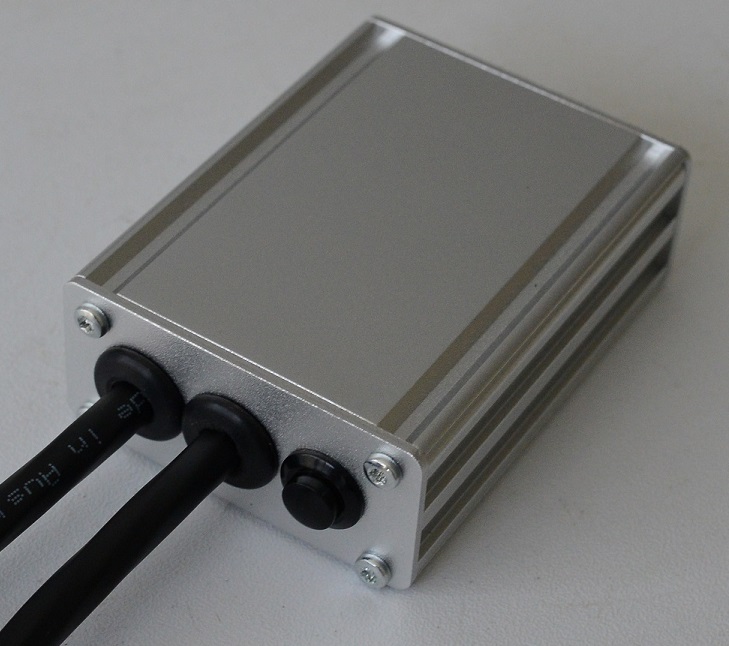

Here is another small ignition driver I have been playing with...




Its to convert a normal ignition module output in to a LS1/LS2 coil compatible signal. There are 3 coil inputs and 6 coil outputs - so on a V6 you can pull off the coil packs from the module base and wire out the 3 terminals to this module which drives 6 x LS1 coils. It also works with single coil (V8) and 2 coil (4cyl DIS) systems.

There is an RPM input that gets its signal from the Delco ref signal, the button on case is to set the random cyl spark cut rev-limit (bring the engine up to half the desired RPM and release to set). And of course, another wire for 2-step enable :twisted:

It is not a replacement for your current ignition module and cannot read cam/crank signals for delco conversions. It simply allows for a better spark by using LSx coils, spark cut rev limit on track cars and of course 2-step launch (ground switched so will interface nicely with switching map B of 12P to chuck some extra fuel in and spark retard).

User avatar
Posts: 2573
Joined: Sun Mar 01, 2009 8:59 am
Location: North Coast, NSW

Re: LSx Coil Driver

Postby Jayme » Wed Jul 03, 2013 12:02 pm

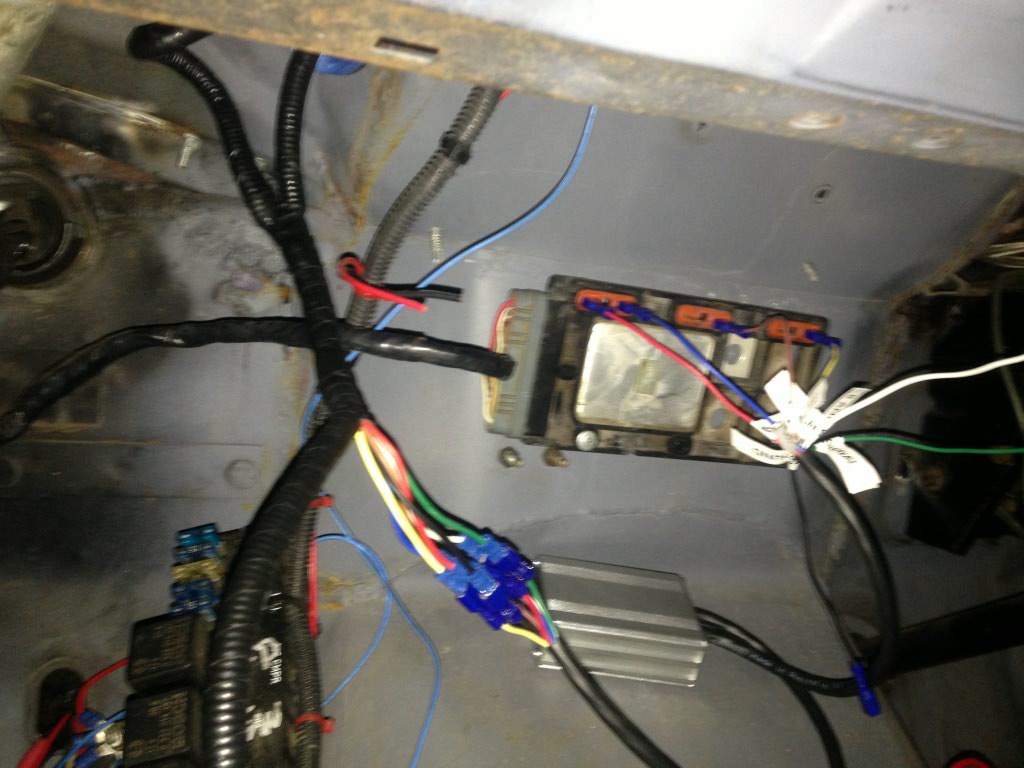

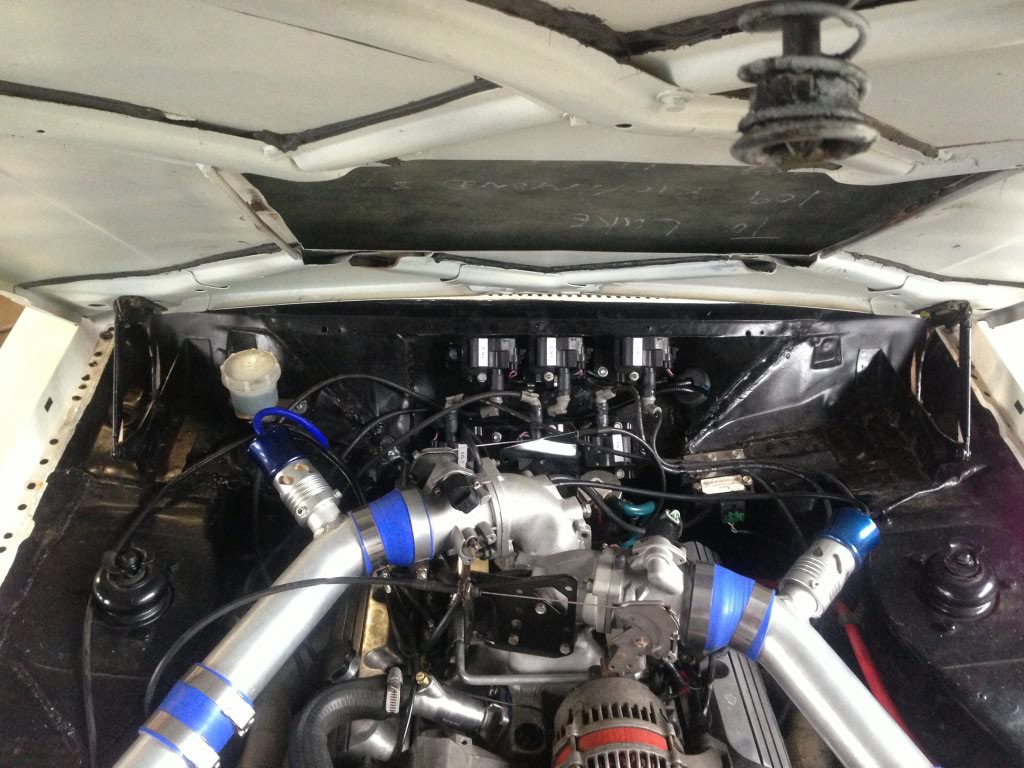

I have recently installed and tested one of these on a friends V6 twin turbo escort :D simple directions, easy to wire up and everything worked perfectly.






also a video of it running

User avatar
Posts: 19
Joined: Mon Jun 03, 2013 9:18 pm
Location: Sydney, NSW

Re: LSx Coil Driver

Postby commo_carl » Wed Jul 03, 2013 7:56 pm

What a great job you have done on that! How much would we be looking at for one of these? Also, how much boost were you able to build on that 2-step you did in the video Jayme?

User avatar
Posts: 2573
Joined: Sun Mar 01, 2009 8:59 am
Location: North Coast, NSW

Re: LSx Coil Driver

Postby Jayme » Wed Jul 03, 2013 8:07 pm

dunno lol our boost guage is broken and I didnt have my laptop with me to check......... more testing to come soon.

User avatar
Posts: 4815
Joined: Sat Feb 28, 2009 8:38 pm
Location: Wellington NZ

Re: LSx Coil Driver

Postby delcowizzid » Sun Aug 11, 2013 10:51 pm

began testing mine today. these coils pack a serious punch after seeing the sparks they produce im not touching the leads when its running LOL.video for those who dont read my thread
If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem

User avatar
Posts: 4094
Joined: Mon Jan 04, 2010 10:23 am

Re: LSx Coil Driver

Postby The1 » Sun Aug 11, 2013 11:03 pm

definatly be interesting to test with some good boost ;) awesome work as always

User avatar
Posts: 4815
Joined: Sat Feb 28, 2009 8:38 pm
Location: Wellington NZ

Re: LSx Coil Driver

Postby delcowizzid » Sun Aug 11, 2013 11:06 pm

boosted test maybe before the week ends.just need to get some k's on the vx tomorrow and check coil temperatures to make sure im not overdwelling them then onto the vb they go for boost building test
If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem

User avatar
Posts: 4094
Joined: Mon Jan 04, 2010 10:23 am

Re: LSx Coil Driver

Postby The1 » Sun Aug 11, 2013 11:13 pm

idle seems to be smoother by the looks perhaps?

User avatar
Posts: 4815
Joined: Sat Feb 28, 2009 8:38 pm
Location: Wellington NZ

Re: LSx Coil Driver

Postby delcowizzid » Sun Aug 11, 2013 11:46 pm

idle is heaps smoother but it wasnt in that video one coil was arcing out making a miss if i opened up the throttle to fast it cleared out when i moved the coils.the output of these coils is so strong i had arcs flowing down the dirt on my rubber fuel lines to the steel line just a little dodgy LOL
If Its Got Gas Or Ass Count Me In.if it cant be fixed with a hammer you have an electrical problem

User avatar
Posts: 4094
Joined: Mon Jan 04, 2010 10:23 am

Re: LSx Coil Driver

Postby The1 » Mon Aug 12, 2013 8:31 am

woops :o
